- Payload : 1,000 kg

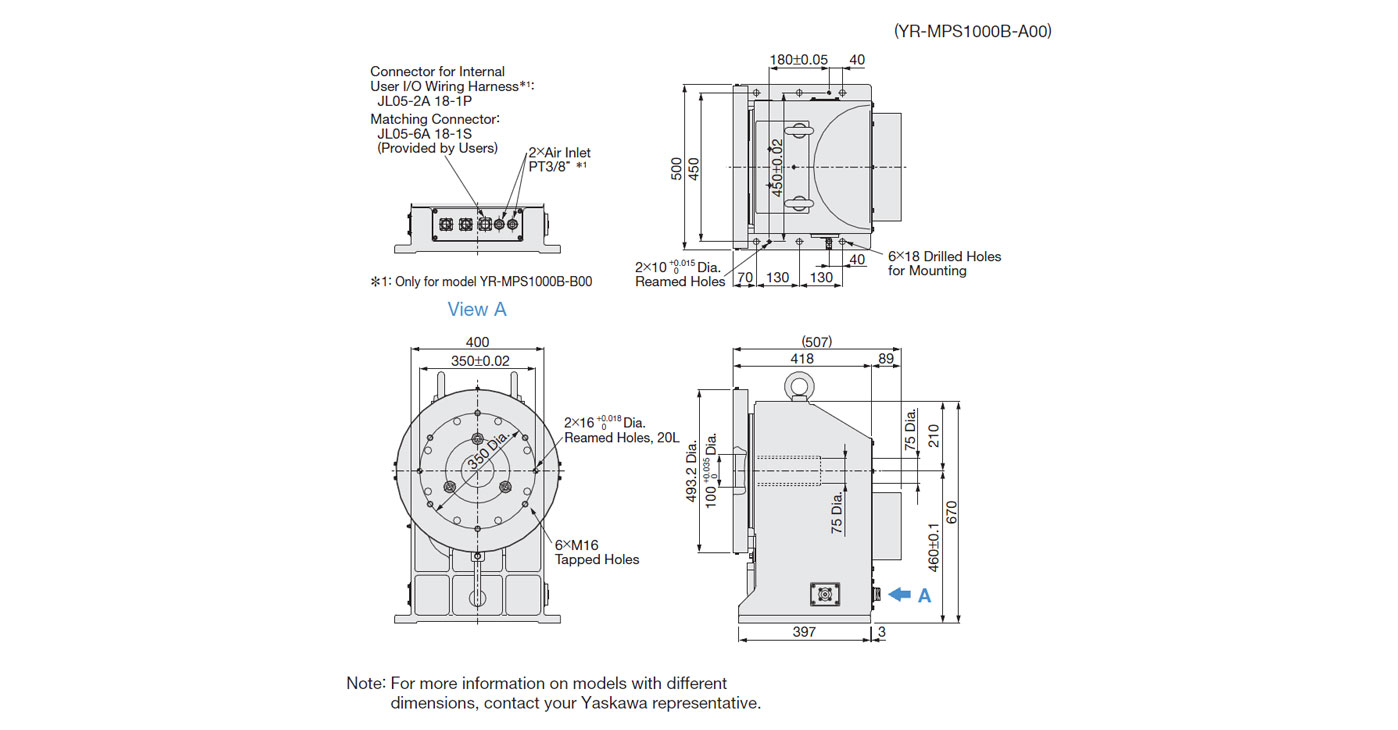

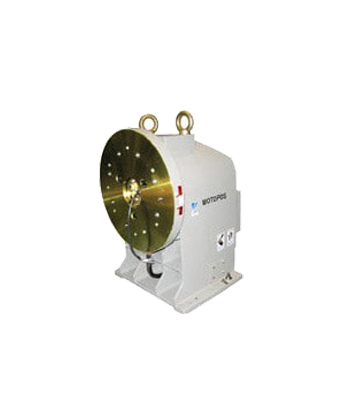

- Model : YR-MPS1000B-A00
- Allowable Moment : 2450 N·m
- Allowable Moment of Inertia(GD²/4) : 200 kg·m2
- Rotational Angle : -180° - +180°
- Max. Rotational Speed : 1.92 rad/s (110°/s)
- Repeatability : ±0.2 mm
- Applicable Controller : NX100, DX100
- Approx. Mass : 350 kg
- Internal I/O Wire : 6 cables
- Internal Air Hose : 2 hoses
